Thermtest Instruments Measurement Platform (MP-V) Model：MP-V

Versatile measurement platform with accurate methods for thermal conductivity, thermal diffusivity, specific heat and thermal effusivity of solids, liquids, pastes and powders.

Add to Inquiry

Detail information Specification

Transient methods share similar theory with differences that are specific to their primary design.

The sensors are electrically connected to a power supply and sensing circuit. A current passes through the sensors and creates an increase in temperature, which is recorded over time. The heat generated is then diffused into the sample at a rate dependent on the thermal transport characteristics of the material.

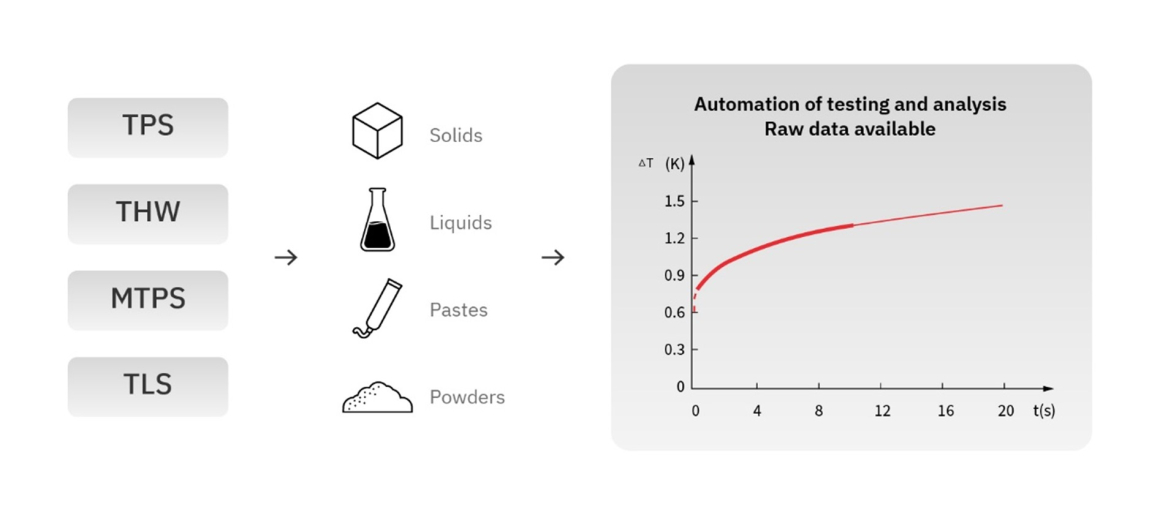

iTransient
Intelligent transient design for automation of testing and analysis. Raw data is always available to empower understanding of your results. Name your sample, iTransient does the rest.
- Transient Plane Source
- Transient Hot Wire
- Modified Transient Plane Source
- Transient Line Source

Methods	TPS	THW	MTPS	TLS	THW-L
Materials	Solids, pastes and powders	Liquids	Solids, pastes and powders	Soil and polymers	Liquids and PCMs
Thermal conductivity (W/m·K)	0.01 to 100 / 500	0.01 to 2	0.03 to 100 / 500	0.1 to 8	0.01 to 2
Thermal diffusivity (mm²/s)	0.01 to 50 / 300	Up to 0.5	0.01 to 50 / 300	N/A	Up to 0.5
Specific heat (J/kg-K)	Up to 5	Up to 5	Up to 5	N/A	Up to 5
Thermal effusivity (W√s/m²K)	20 to 20000 / 40000	N/A	20 to 20000 / 40000	N/A	N/A
Temperature (°C)*	Room temperature or -75 to 300	Room temperature or -50 to 100	-50 to 200	-40 to 100	0 to 100
Accuracy	5%	2%	5%	5%	2%
Repeatability	1 to 2%	1%	2%	2%	1%
Smallest dimension**	10mm x 10mm to unlimited	20 ml	25mm x 25mm to unlimited	50mm to unlimited	20 ml
Sample thickness (mm)**	0.05 to unlimited	N/A	0.1 to unlimited	100 to unlimited	N/A
Standard	ISO 22007-2:2022, ISO 22007-7:2023, GB/T 32064-2015	ASTM D7896-19	ISO 22007-7:2023	ASTM D5334-22a, ASTM D5930-17, IEEE 442-2017	ASTM D7896-19
